Standard: API, DIN, JIS, GB, ANSI.Material: Stainless Steel, Carbon Steel, Brass, Bronze, Alloy Steel, Titanium, 904l, Ductile Iron, Cast Iron, Cast Steel. Size: 1-1/2" ~80", DN40~DN2000.Pressure: 150LB~300LB, PN10~PN40.Type: Wafer, Flanged, Double Offset, Triple Offset, Moterized, Pneumatic, Rubber Lined, PTFE Lined.Butterfly valve is a valve that you can use for isolating or controlling flow. The closing mechanism takes the type of a disk. Operation is comparable to those of a ball valve, which enables for convenient turn off. Butterfly valves are usually favored since they're reduced cost with other valve designs in addition to being light, meaning less support is needed. The disc lies in the heart of the pipe, passing with the disc is a fishing rod linked to an actuator around the outdoors from the valve. Rotating the actuator turns the disc either parallel or verticle with respect towards the flow. Unlike a ball valve, the disc is definitely present inside the flow, therefore a pressure drop is definitely caused within the flow, no matter valve position. A butterfly valve comes from a group of valves known as quarter-turn valves.The "butterfly" is a metal disc installed on a fishing rod. Once the valve is closed, the disc is switched in order that it completely blocks from the passageway. Once the valve is fully open, the disc is rotated a quarter turn in order that it enables a nearly unrestricted passage from the fluid. The valve can also be opened up incrementally to throttle flow. There are various types of butterfly valves, each adapted for various pressures and various usage. The resilient butterfly valve, which utilizes the versatility of rubber, has got the cheapest pressure rating. Our prime performance butterfly valve, utilized in slightly greater-pressure systems, features a slight offset in the manner the disc lies, which boosts the valve's sealing ability and reduces its inclination to put on. The valve ideal for top-pressure systems may be the triple offset butterfly valve, which utilizes a metal seat, clarification needed and it is therefore in a position to withstand a greater quantity of pressure.
Counter-weight Hydraulic Control Check Butterfly Valve, PN10, PN16

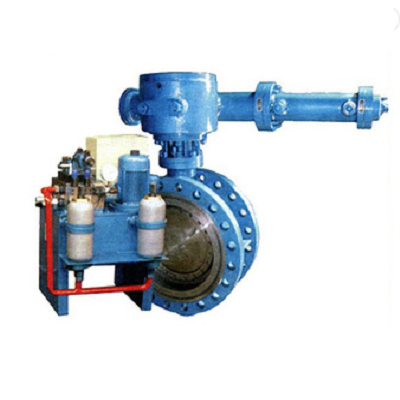

Electric-Hydraulic Operated Quick Closing Triple-Eccentric Butterfly Valve, PN10, PN16

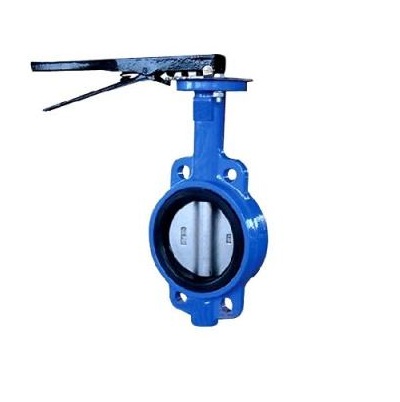

Lever Opreated Wafer Butterfly Valve, PN6, PN10, PN16

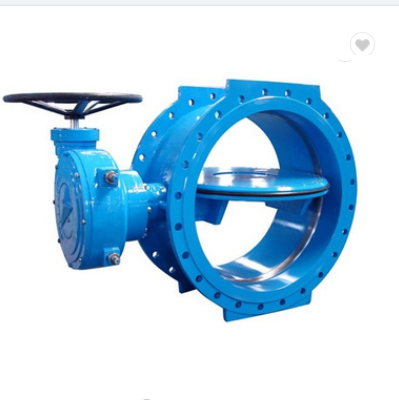

Double Eccentric Butterfly Valve, WCB, Cast Iron, Ductile iron
