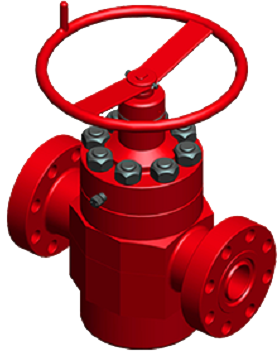

API 6A FC slab gate valve 2000PSI-20000PSI

API 6A FC slab gate valve Feature

API 6A FC slab gate valve is Full bore design, effectively eliminate the pressure drop and Vortex, slowing down flushing by solid particles in the fluid.

Special seal type, and obviously reduce the torque of switching. API 6A FC slab gate valve is Metal to metal seal between the valve body and bonnet, gate and seat. The surface of gate overlay hard alloy by supersonic spray coating process and the seat ring with hard alloy coating or stainless, which have the feature of high anti-corrosive performance and good wear resistance.

API 6A FC slab gate valve Seat ring is fixed by fixed plate, which has good performance of stability. Back seal design for the stem which can be easy for replacing packing under pressure. One side of bonnet is equipped with sealing grease injection valve, in order to supplement the sealing grease, which can improve the sealing and lubricating performance.

Pneumatic (hydraulic) actuator can be equipped according to requirement of customer.

API 6A FC slab gate valve General

Name: API 6A FC slab gate valve
Pressure: 2000PSI~20000PSI
Diameter: 1-13/16”~9”(46mm~230mm)
Working temperature: -60℃~121℃(KU Grade)
Material Level: AA、BB、CC、DD、EE、FF、HH
Specification Level: PSL1~4
Performance Level: PR1~2

API 6A FC slab gate valve Technical data

Name Size Pressure(Psi) Specification
API 6A FC slab gate valve 1-13/16〞 10000 PSL1~4/PR1~2/XY/AA~HH
1-13/16〞 15000 PSL1~4/PR1~2/XY/AA~HH
2-1/16〞 5000 PSL1~4/PR1~2/XY/AA~HH
2-1/16〞 10000 PSL1~4/PR1~2/XY/AA~HH
2-1/16〞 15000 PSL1~4/PR1~2/XY/AA~HH
2-9/16〞 5000 PSL1~4/PR1~2/XY/AA~HH
2-9/16〞 10000 PSL1~4/PR1~2/XY/AA~HH
2-9/16〞 15000 PSL1~4/PR1~2/XY/AA~HH
3-1/8〞 5000 PSL1~4/PR1~2/XY/AA~HH
3-1/8〞 10000 PSL1~4/PR1~2/XY/AA~HH
3-1/16〞 15000 PSL1~4/PR1~2/XY/AA~HH
4-1/16〞 5000 PSL1~4/PR1~2/XY/AA~HH
4-1/16〞 10000 PSL1~4/PR1~2/XY/AA~HH
4-1/16〞 15000 PSL1~4/PR1~2/XY/AA~HH
